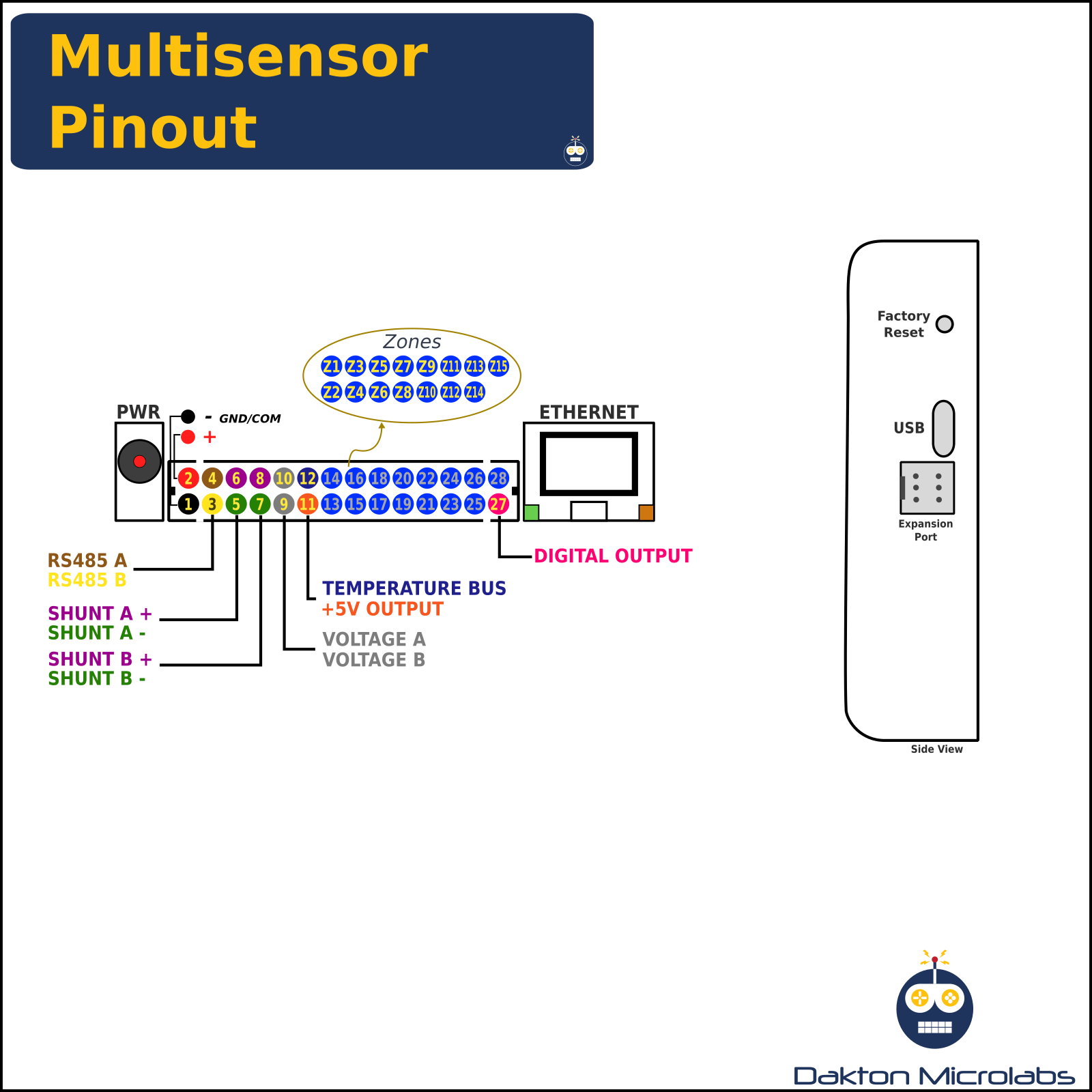

Pinout

Helper Table

Pinout Table
PIN Description
1 Ground
2 Voltage input/output
3 RS485 B
4 RS485 A
5 Shunt A (-)
6 Shunt A (+)
7 Shunt B (-)
8 Shunt B (+)
9 Voltage B
10 Voltage A
11 +5DC Output (controlled)
12 Temperature Bus
13 Zone 2
14 Zone 1
15 Zone 4
16 Zone 3
17 Zone 6
18 Zone 5
19 Zone 8
20 Zone 7
21 Zone 10
22 Zone 9
23 Zone 12
24 Zone 11
25 Zone 14
26 Zone 13
27 Digital Output
28 Zone 15
